What are the specifications of the pallet rack uprights?

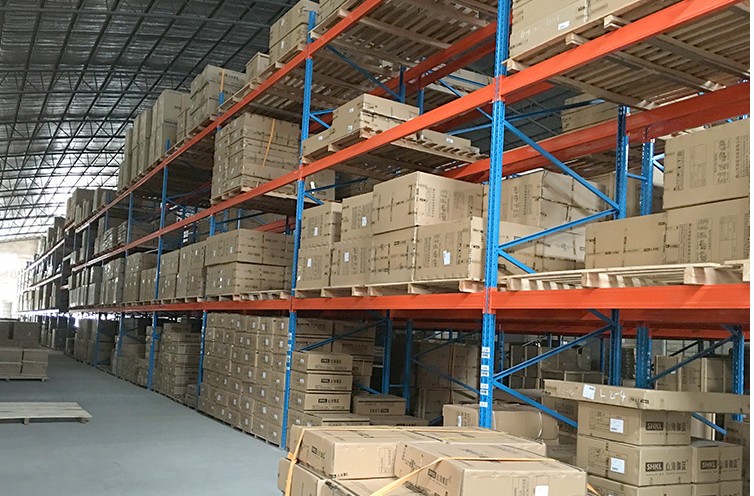

Pallet racks are usually heavy-duty racks and are the most common type of racks in corporate warehouses today. It is suitable not only for multi-variety and small-batch items, but also for small-variety and large-volume items. This type of shelf is most used in high-level warehouses and ultra-high-level warehouses.

Generally, the goods stored on the pallet racks are heavier and larger in volume. The general load-bearing is 800kg, and even the load can reach 5 tons per layer. To achieve such a high load-bearing capacity, there are very strict regulations for various types of them. So what are the uprights specifications of the pallet rack?

  Pallet rack uprights are usually made of Q235 as raw materials, and are often used in pallet racks in machinery molds, cold chain cold storage, pharmaceutical and chemical, auto parts, ceramics and other industries. The pallet racking column has 12 cross-section designs, the column height is adjustable by 50 cm, and the 8.8-level bolt connection is firm and reliable. The surface is electrostatically sprayed, with anti-corrosion, anti-static functions, and beautiful appearance.

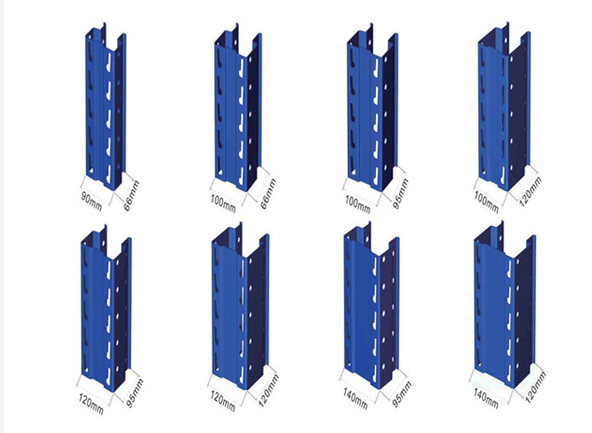

        Our common heavy-duty pallet racking uprights are 90mm×65mm, 90mm×67mm, 100mm×72mm, 120Mm×95mm. The load-bearing capacity matched by different column specifications is: the uprights with the size of 90mm×65mm can bear a net weight of 8005kg, and the height of the uprights can reach 6525mm. It can also be customized according to the height of the enterprise warehouse; the 90mm×67mm column can bear up to 10005kg net weight, and the uprights height can be made 7500mm. Because the overall width of the column is thicker, it can bear the goods of greater height, relative to the bearing capacity of the product. also improved. The latter two types of 100mm × 72mm and 120mm × 95mm can be matched with a load-bearing capacity of 12005kg and 15005kg respectively.
